Picskate Inline Roller Skate Frame Set – P-73 Pic® 3 Wheel Professional

Original price was: $240.00.Current price is: $99.99.

SKU: ZMLND 18377 Categories: Frame Sets, Pic Skates - In-line Figure Skates, Roller Skates Tag: Picskate

Streamlined service, designed for your convenience.
100% Quality Satisfaction
7 Days of Hassle-Free Returns
Shop with Confidence, Pay Safely

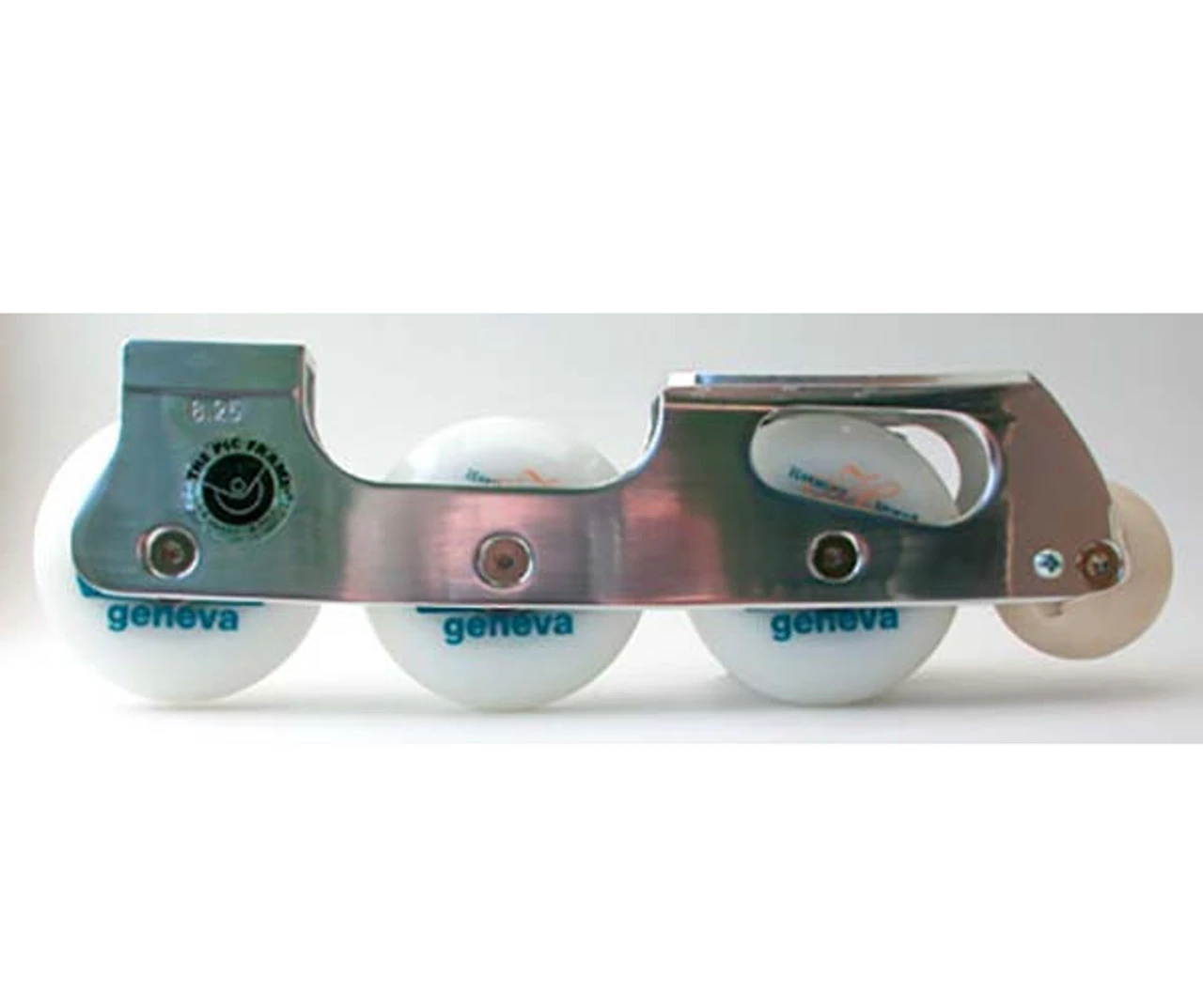

The P-73 Pic^® 3 wheel frame set. Like the 994, is equipped with a highly finished rockered frame, specially designed “Geneva” wheels and ultra smooth ABEC 7 bearings and P-11 Ball PIC. The shorter blade may be favored by skaters with shoe size 7.5 and under. (Set includes 2 frames, Ball Pics, “Geneva” wheels, ABEC 7 bearings, mounting kit and instructions.)

How to Select Your Frame Size

Available Sizes

3 Wheel – 7.25″, 7.50″, 8.25″, 8.75″, 9.25″, 9.75″

4 Wheel – 9.25″, 9.75″, 10.25″, 10.75″, 11.37″, 12.12″

Measure the distance from heel to toe using a cloth tape.
Subtract 1/4″ and order that or next smaller size.
Example 1: Boot measures 10-1/4″ toe to heel
(10-1/4″ – 1/4″ = 10″) Order 9.75″

Example 2: Boot measures 9-1/8″ toe to heel
(9-1/8″ – 1/4″ = 87/8″) Order 8.75″

Pic Frame Installation

Center the frame from toe to heel. Attach screws to slotted holes first for easy adjustment, then attach remaining screws when properly positioned.

The recommended distance of the pick is 1-1/8″ forward of the toe.

The sole of the boot will draw down when attached. The gap between plate and toe is normal.
To rotate a worn pick, remove set screws and rotate pick to an unworn surface and reattach set screws.

^® Frame

Parts Check List
	3 wheels	4 wheels
Pic frames	2	2
T-bushings	12	16
Axle bolts	6	8
Coupling screws	6	8
Allen keys	2	2
Wheels	6	8
Bearings pre-mounted	12	16
Spacers pre-mounted	6	8
Heel plate screws 3/4	8	8
Toe plate screws 1/2	12	12

Questions & Answers

Question: How does it work?
Answer: Works like an ice skate (no hockey stops or forward “Ts”).

Question: Can I buy the frame set and mount it to my skating boots?
Answer: Yes, there are 4 frame models to choose from:
4 Wheel Frame
1. Professional – Model 994
2. Performer – Model 894
The 4 wheel frame is recommended for sizes 9.75 and larger.

3 Wheel Frame
1. Professional – P-73
2. Performer – P-53
The 3 wheel frame is recommended for sizes 9.25 and smaller.

Question: How do I know what size skate outfit to buy?
Answer: Send or fax a tracing of each foot done in the standing position and we will apply that measurement to our size chart. Also, state your street shoe size.

Question: Will I get edges like an ice skate?
Answer: Yes, you will experience inside, center and outside edges.

Question: How do I know what size frame set to buy?
Answer: Using a cloth measuring tape, measure the sole length (toe to heel) on the boot you intend to mount the PIC^® Frames to. Subtract 1/4″ and order that or the next size smaller. PIC^® Frames come in 10 sizes: 7.25″, 7.50″, 8.25″, 8.75″, 9.25″, 9.75″, 10.25″, 10.75″, 11.37″ and 12.12″.

Question: Will I be able to do one footed spins on PIC^® Frame Skates?
Answer: Yes.

Question: Will I be able to do jumps on PIC^® Frame Skates?
Answer: Yes. All edge and toe jumps are performed on PIC^® Frame Skates up through double axel as well as back flips.

Question: Will I be able to do footwork maneuvers on PIC^® Frame Skates?

Answer: Yes. Virtually every maneuver such as Ina Bauers, three turns, brackets, rockers, eagles, choctaws, etc., can be performed on PIC^® Frame Skates.

Question: Can I attach PIC^® Frames to my plastic inline boots?
Answer: Yes, however you will need a spacer for the heel. We recommend you have your local skate shop make the installation.

How to Order

When ordering PIC^® Frame Sets

The 4 wheel frame has a double rocker easing the glide and feel like ice. The shorter 3 wheel Pic frame rocker was designed to provide the feel like ice for the smaller skate.

3 Wheel
Set	Wheel	Bearings	Pic	Level
P-53	Axel 6.0 – 70mm	ABEC 5	P-9 Power pic	Intermediate
P-73	Geneva – 68mm	ABEC 7	P-11 Ball pic	Intermediate – Skilled
J-13	*Jazz 2 – 72mm	**ABEC 11	P-14 X-Ball pic	Skilled
4 Wheel
Set	Wheel	Bearings	Pic	Level
894	Axel 6.0 – 70mm	ABEC 5	P-9 Power pic	Intermediate

P-73	Geneva – 68mm	ABEC 7	P-11 Ball pic	Intermediate-Skilled
J-18	*Jazz 1 – 70mm	**ABEC 11	P-14 X-Ball pic	Skilled
